Wall Air Vent Kit

Categories: Air Vets

Additional information



Air intake sets provide fresh air into the building. They can be mounted on the walls above or next to the windows in living spaces or boiler rooms.

We are here, to help you.

49.45  BOX

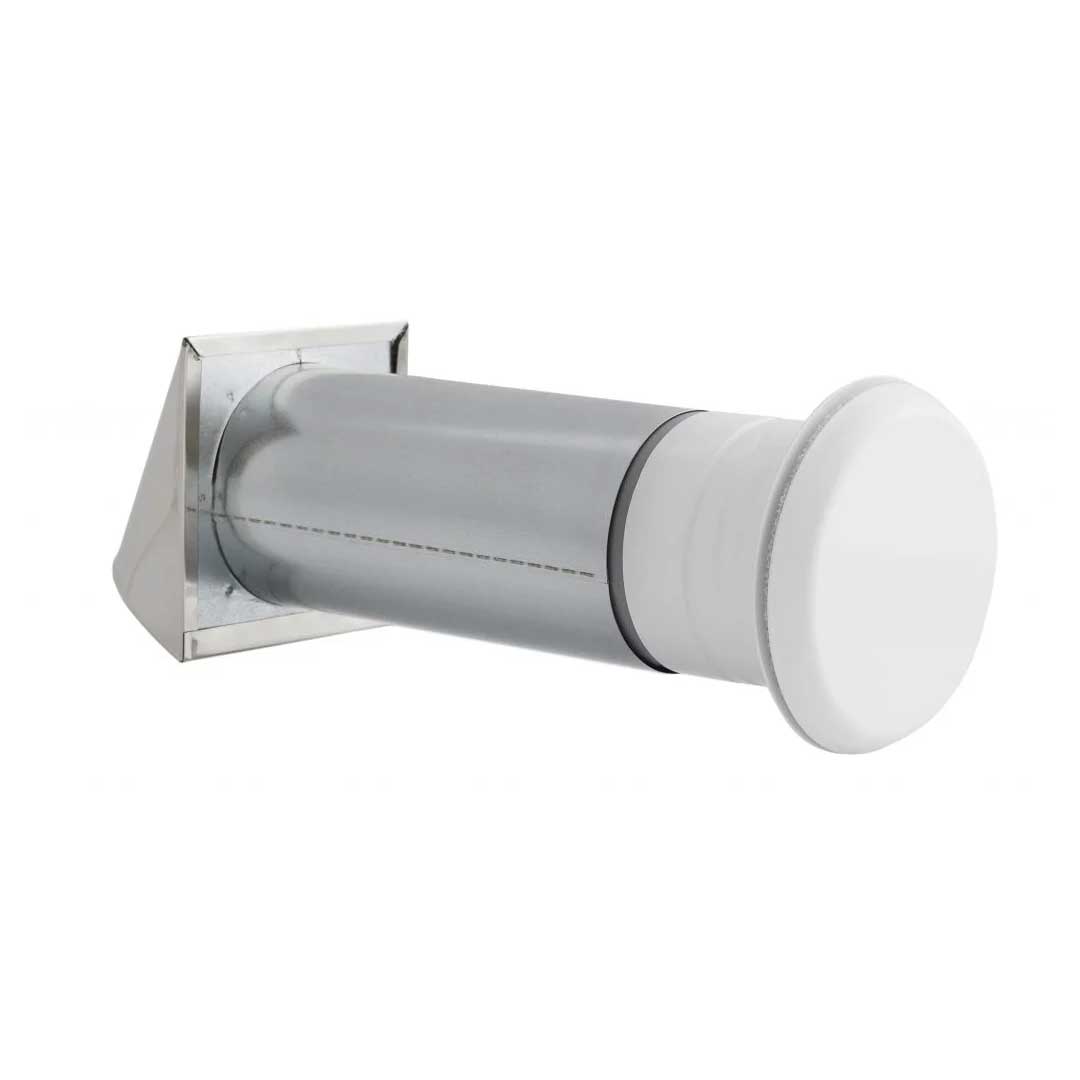

The air intake set provides fresh air into the building. It is to be mounted above or next to the window, in the wall. The basic version is equipped with an air intake that assures proper air supply from outside. It is constructed in a way that protects it from rainwater and is also equipped with wire mesh against rodents. On the side mounted inside the building air intake set is equipped with a flap valve with insulation that prevents water vapour condensation in winter and reduces noise. Valve allows to regulate of the airflow precisely.

The air intake set can be additionally equipped with an airflow stabilizer. It controls the airflow, limiting the air supply to certain limits and protecting it from backflow.

Air intake set with heater provides fresh and preheated air into the building. The thermostat turns the heating module on when the temperature falls below 3°C and switches it off when it rises above 10-15°C. Semiconductor heating elements automatically regulate power consumption in relation to the amount and temperature of flowing air. Basic version is equipped with a flap valve. Optionally a version with stabilizer is available.

Each air intake set includes a filter (separately in the box, to be mounted by the user). Filter enables effective capturing of dust and other particles carried by the air.

Technical Data:

Max Air Flow
180 m3/h
110 mm
Duct length
320-550 mm
1,3 kg





Documentation, catalog and other attachments:
