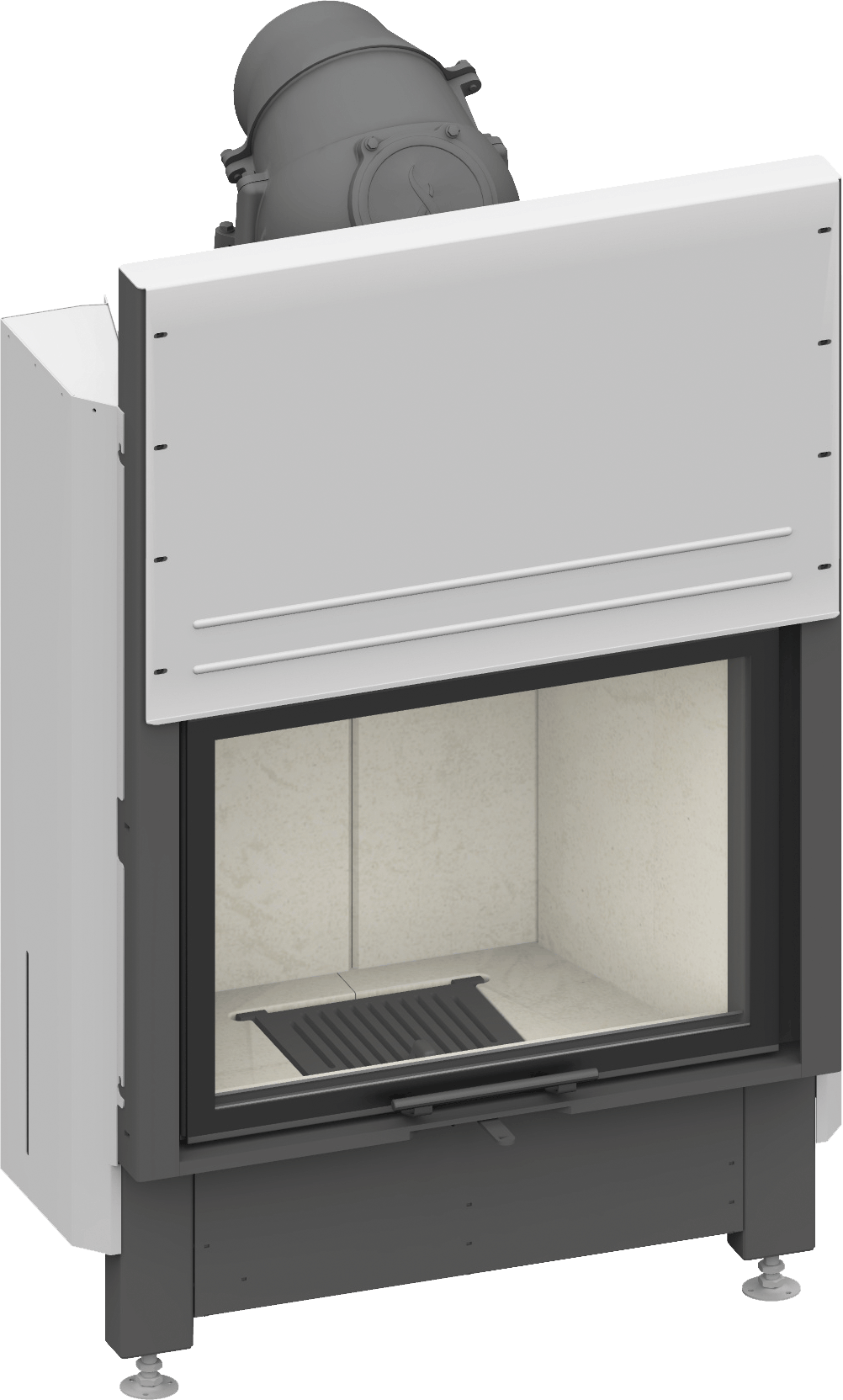

Lina 67

Details

  • Fireplace insert front open
  • 6745 – Height 45 cm
    6751 – Height 51 cm
    6757 – Height 57 cm
  • Self closing door
  • The lower panel for the secondary air is
    adjustable for an excellent glass wash
  • Standard refractory lining: Smooth chamotte
  • High-quality cast-iron dome, all parts are
    movable, adjustment from 0° to 90°
  • Easy and fast adjustment of the construction height
  • Easily dismantles for transportation
Category:

Description

anthrazit

New standard version: Kristal

The fireplace inserts Lina are equipped standard with a 4-sided printed glass.

innenauskleidung_raphael

Refractory lining

Masonry or smooth appearance, chamotte or vermiculite, upon request cream white or black.
Standard: Smooth chamotte

tunnelversion

Tunnel version

The Lina 67 is also available as a room divider or tunnel version with hinged back and individual front side.

tunnelversion
Fireplace substructure 270 mm, external air connection for supply with external combustion air through the air collector box: ø 125 mm, left, right, rear (depen-ding on insert) included in scope of supply, optional ø 145 mm on base.

Technical Data
Nominal output9kW
Thermal output range (depending on wood amount)3,2 – 10,9 kW
Efficiency> 78 %
Insulation (based on SILCA 250KM)60 mm
Ext. air connector125 mm
Weight (depending on the equipment)220 – 280 kg
Heat distribution: glass window30 %
Heat distribution: convection70 %
Data for chimney sweepers or responsible authority
according to DIN EN 13384 (Closed operation)
Flue gas mass flow9 g/s
Flue gas temperature320 °C
Required draught,
min.-max.
12-20 Pa

Variants

lina67h

lina67s
